儀表管接頭 >> YZG5系列焊接式式管接頭 >> YZG5-25 焊接式三通中間接頭(焊接式三通管接頭)
Instrument pipe Connector>>YZG5 series welded pipe Connector>>YZG5-25 Welded tee intermediate Connector(Welded tee Connector)
說明：
焊接式管接頭YZG5系列適用于自控各系統的測量管路、液壓管路和其他管路。該系列接頭是應用最廣泛和最有代表性的導壓管常用接頭。系列中有許多名稱相同的接頭，其差別是接管的配合形式，流水號15以前為一凸出小管與接頭配合。流水號15以后，則是平面配合。
Explain:
The welded pipe Connector YZG5 series is applicable to the measuring pipeline, hydraulic pipeline and other pipelines of automatic control systems. This series of connectors are the most widely used and representative common connectors for impulse pipes. There are many joints with the same name in the series. The difference is the fitting form of the connecting pipe. Before the serial number 15, it was a protruding small pipe fitting with the joint. After the serial number 15, it is plane fitting.
性能規范：
□適用介質：油、水、氣等非腐蝕性或腐蝕性介質
□適用溫度：由使用介質和選用墊片而定,t≤450℃
□制造材料：20#，35#，1Crl8Ni9Ti，0Crl8Ni-12M02Ti，316，316L等
□配管要求：∅6—∅50普通級精度無縫鋼管
□終端螺紋：M，G，ZG，PT，NPT等
□執行標準：《儀表工手冊》樂嘉謙著 第三章 儀表加工件 第一節 儀表接頭

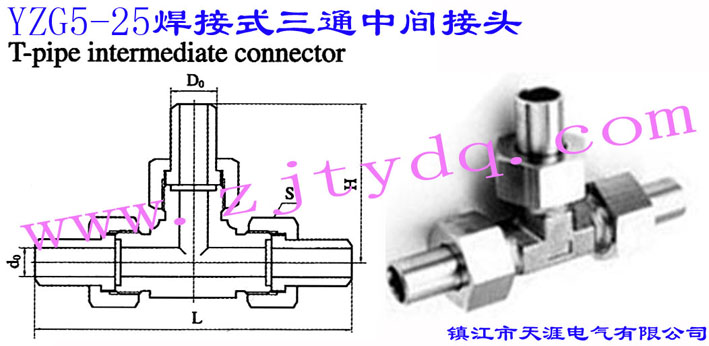

YZG5-25 焊接式三通中間接頭(焊接式三通管接頭)
YZG5-25 Welded tee intermediate Connector(Welded tee Connector)
|
D0 |
d0 |
L |
H |
S |
代 號Code No |
|
6 |
3 |
78 |
39 |
17 |
YZG5-25-Φ6 |
|
10 |
6 |
92 |
46 |
19 |
YZG5-25-Φ10 |
|
14 |
8 |
110 |
55 |
27 |
YZG5-25-Φ14 |
|
18 |
10 |
125 |
62 |
32 |
YZG5-25-Φ18 |
|
22 |
15 |
130 |
65 |
36 |
YZG5-25-Φ22 |
|
28 |
20 |
148 |
74 |
41 |
YZG5-25-Φ28 |
|
34 |
25 |
168 |
84 |
50 |
YZG5-25-Φ34 |
|
42 |
32 |
188 |
94 |
60 |
YZG5-25-Φ42 |
|
50 |
40 |
208 |
103 |
70 |
YZG5-25-Φ50 |
該系列接頭是應用最廣泛和最有代表性的導壓管常用接頭。它的接管可以從∅6×1銅管到∅50×2.5無縫鋼管。連接螺紋可用公制，也可用英制，也可有特殊要求，如PT、NPT等螺紋。
This series of connectors are the most widely used and representative common connectors for impulse pipes. Its connecting pipe can be from ∅6×1 Copper pipe to ∅50×2.5 Seamless steel pipe. The connecting thread can be metric or English, or with special requirements, such as PT, NPT, etc.
※注：YZG5-25 焊接式三通中間接頭(焊接式三通管接頭)Welded tee intermediate Connector(Welded tee Connector)如有改進，恕不另行通知，以產品實物為準。
